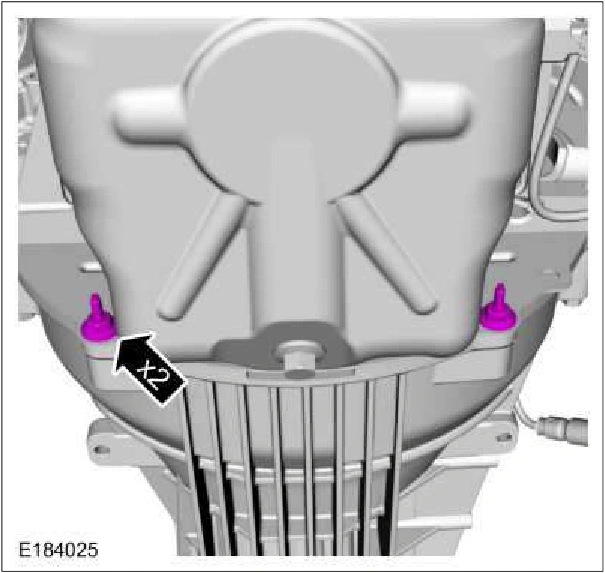

Engine — original illustration 1, reference 556Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

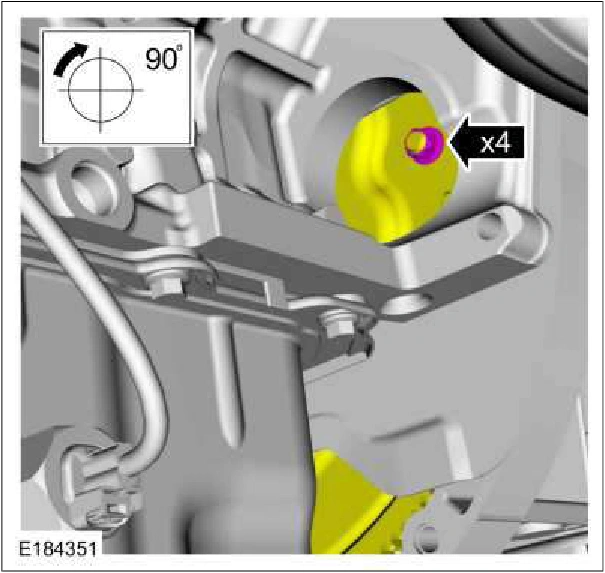

22. NOTE: Only rotate the crankshaft in a clockwise direction.

Install the new torque converter nuts. Use the General Equipment: Magnetic Socket Torque : 35 lb.ft (48 Nm)

Engine — original illustration 2, reference 556Original colors & callouts · Select to enlarge

23. Install the rubber access plug.
