2016 workshop · Engine

Engine

303-01C Engine - 5.0L

2016 Mustang5.0LReference 555 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 555Original colors & callouts · Select to enlarge

20. Install the top transmission-to-engine bolt and stud bolt. Torque : 35 lb.ft (48 Nm)

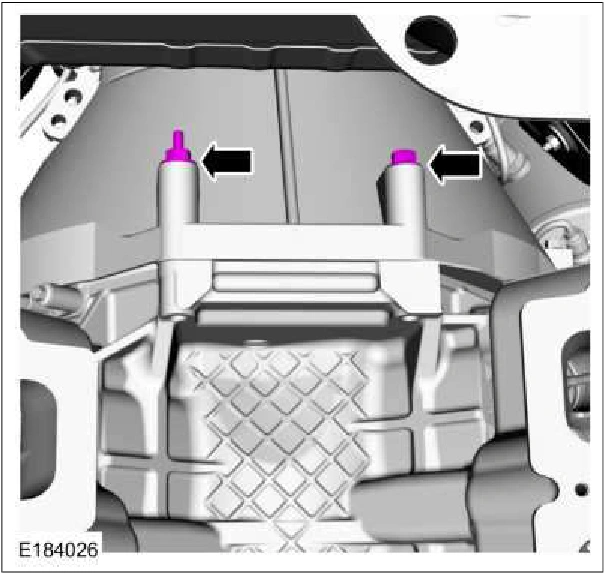

Engine — original illustration 2, reference 555Original colors & callouts · Select to enlarge

6-Speed Manual Transmission - MT82

21. Install the engine rear cover plate stud bolts. Torque : 35 lb.ft (48 Nm)

Source reference 555
