Engine — 2016 workshop reference 553

Engine — original illustration 1, reference 553Original colors & callouts · Select to enlarge

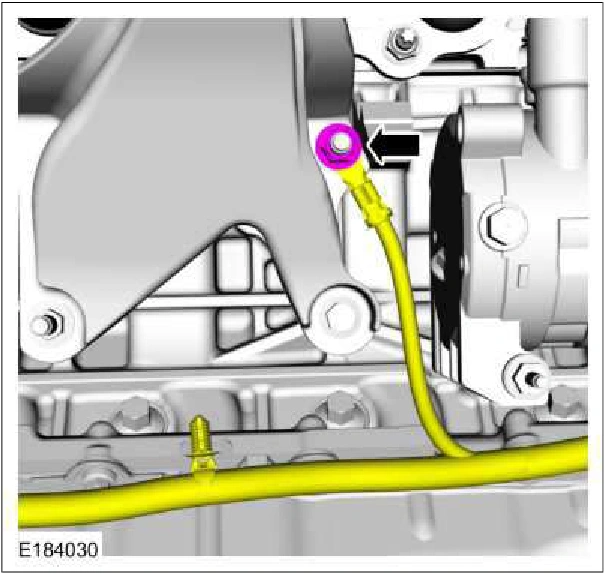

16. Install the ground strap and nut onto the RH engine mount bracket stud bolt. Torque : 35 lb.ft (48 Nm)

Engine — original illustration 2, reference 553Original colors & callouts · Select to enlarge

17. Lower the engine onto the engine mounts and remove the special tools Use Special Service Tool: 303-F072 Support Bar, Engine. , 303-F047 Lifting Bracket, Engine.
