Engine — 2016 workshop reference 550

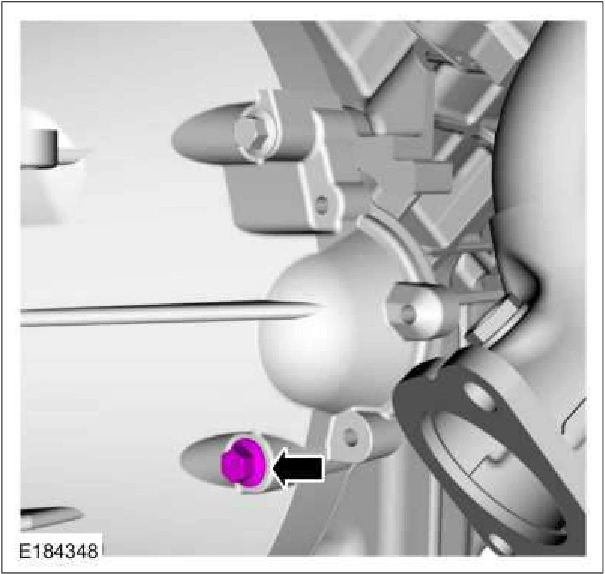

Engine — original illustration 1, reference 550Original colors & callouts · Select to enlarge

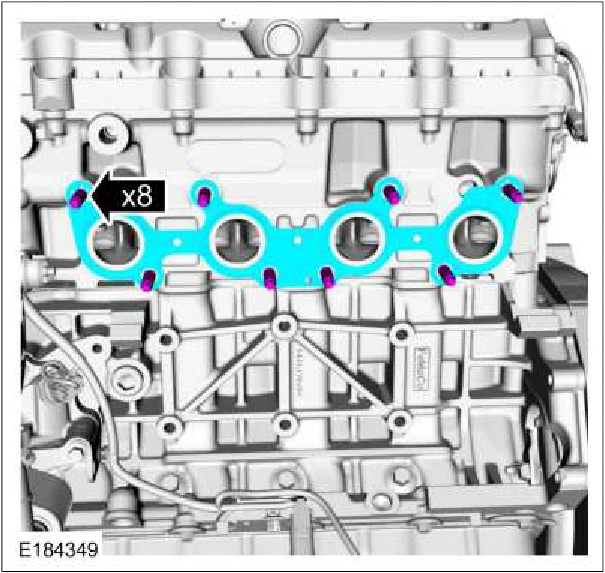

10. Install new studs and new gasket. Torque : 18 lb.ft (25 Nm)

Engine — original illustration 2, reference 550Original colors & callouts · Select to enlarge

11. Install the LH catalytic converter.

Install the new nuts. Torque : Stage 1: 18 lb.ft (24 Nm) Stage 2: 24 lb.ft (32 Nm)
