Engine — 2016 workshop reference 551

Engine — original illustration 1, reference 551Original colors & callouts · Select to enlarge

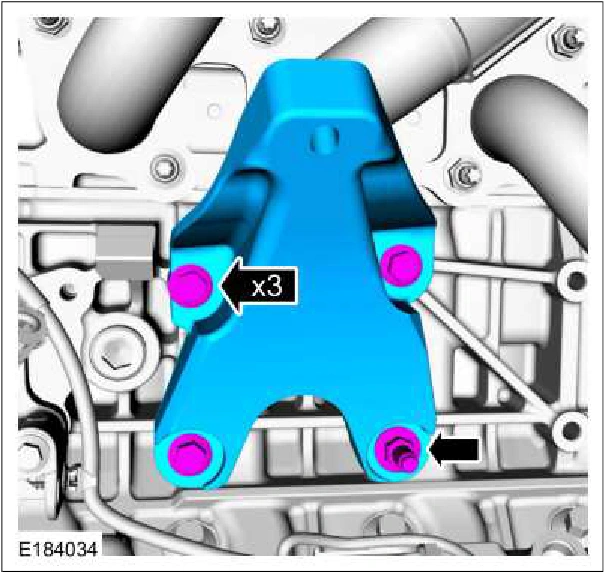

12. Install the LH engine mount bracket, bolts and stud bolt. Torque : 41 lb.ft (55 Nm)

Engine — original illustration 2, reference 551Original colors & callouts · Select to enlarge

13. Install the A/C compressor and the stud bolts. Torque : 18 lb.ft (25 Nm)
