Engine — 2016 workshop reference 554

Engine — original illustration 1, reference 554Original colors & callouts · Select to enlarge

18. Install the RH engine mount nut. Torque : 46 lb.ft (63 Nm)

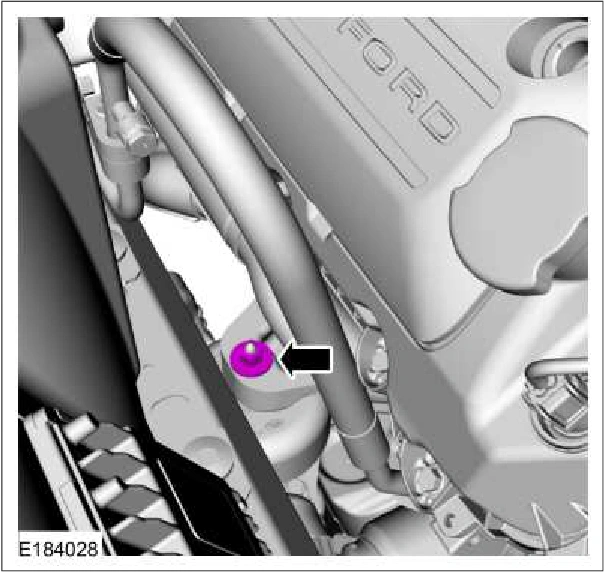

Engine — original illustration 2, reference 554Original colors & callouts · Select to enlarge

19. Install the LH engine mount nut. Torque : 46 lb.ft (63 Nm)
