Engine — 2016 workshop reference 557

Engine — original illustration 1, reference 557Original colors & callouts · Select to enlarge

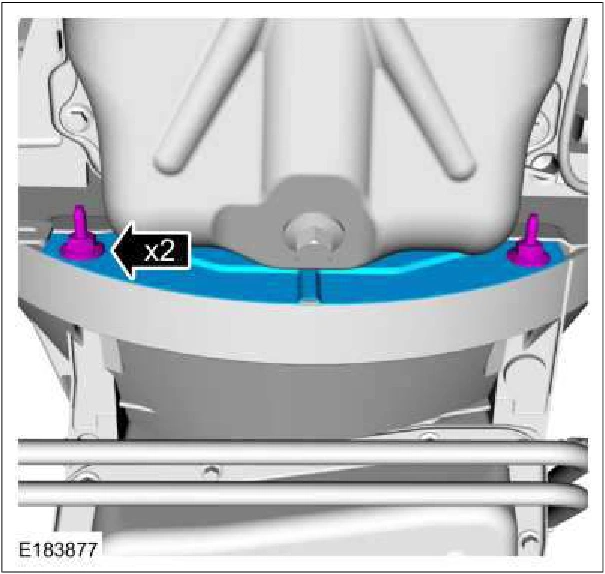

24. Install the flexplate inspection cover and the stud bolts. Torque : 35 lb.ft (48 Nm)

Engine — original illustration 2, reference 557Original colors & callouts · Select to enlarge

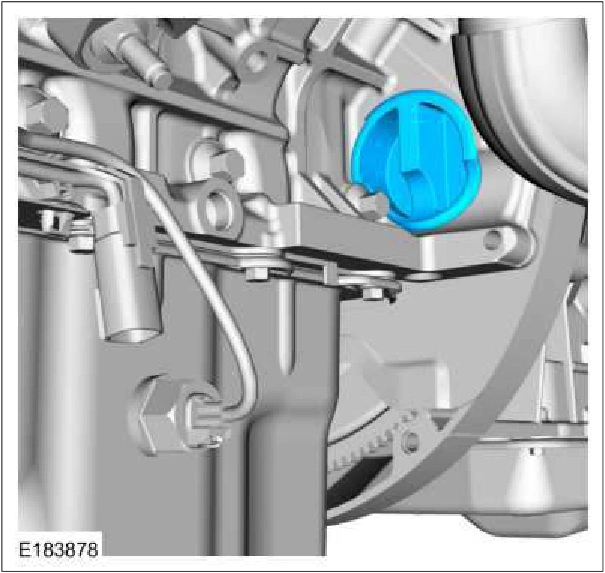

25. Install the transmission cooling tube bracket and nut. Torque : 35 lb.ft (48 Nm)
