2016 workshop · Engine

Engine

303-01C Engine - 5.0L

2016 Mustang5.0LReference 560 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 560Original colors & callouts · Select to enlarge

31. Attach the wiring harness retainer to the oil pan stud bolt.

Install the wiring harness retainer and the nut. Torque : 124 lb.in (14 Nm)

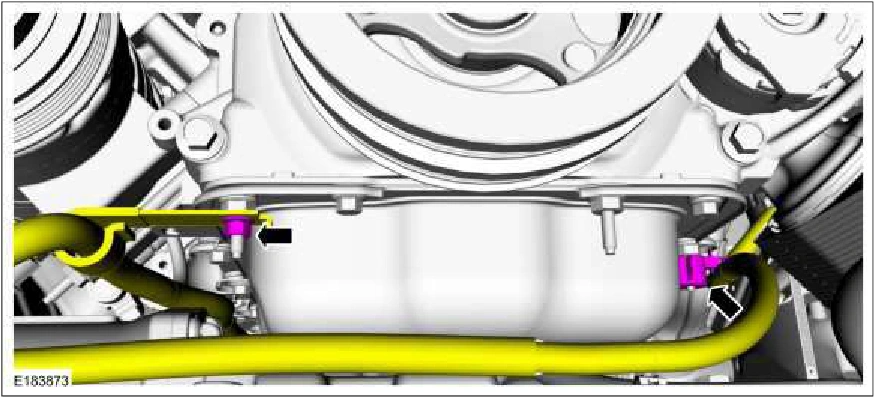

Engine — original illustration 2, reference 560Original colors & callouts · Select to enlarge

32. Attach the wiring harness retainers to the oil pan.
