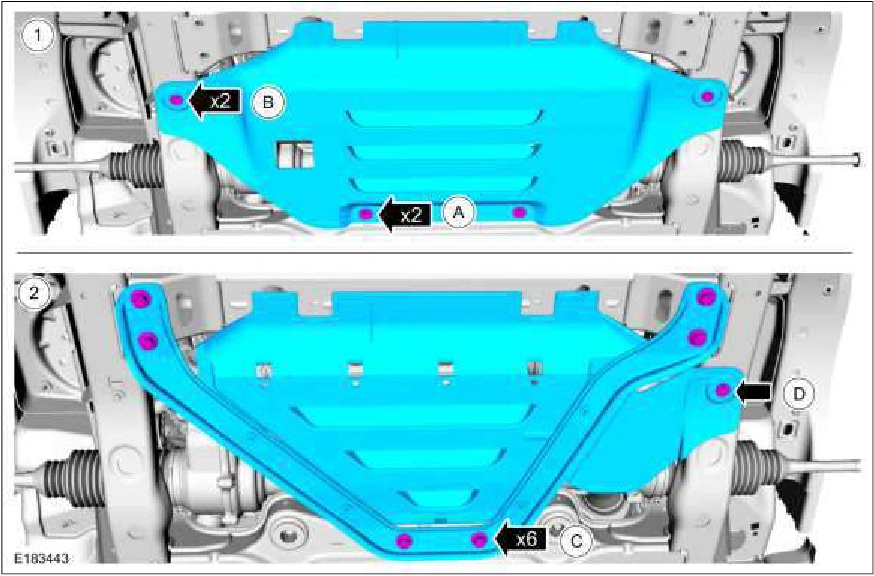

35. NOTE: Vehicles are equipped with either an underbody shield or a subframe bracket and underbody shield assembly.

1. Install the underbody shield and the bolts. Torque : A: 97 lb.in (11 Nm) B: 18 lb.in (2 Nm)

2. Install the subframe bracket and underbody shield assembly and the bolts. Torque : C: 46 lb.ft (63 Nm) D: 18 lb.in (2 Nm)

Engine — original illustration 2, reference 562Original colors & callouts · Select to enlarge

36. NOTE: Automatic transmission shown, manual transmission similar.
