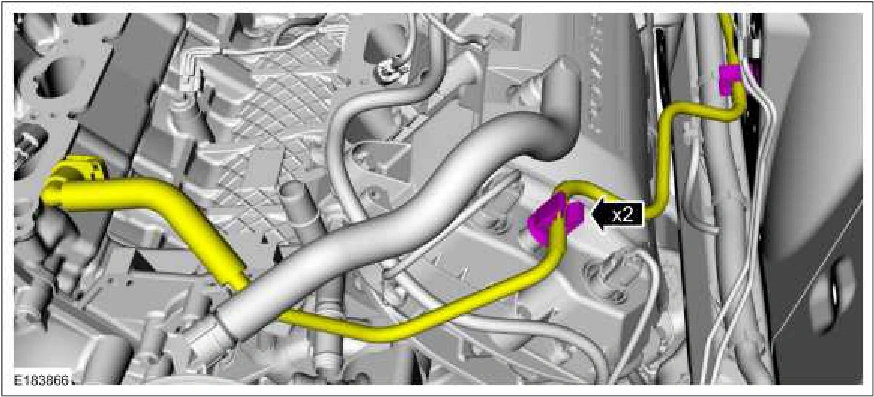

Engine — original illustration 1, reference 564Original colors & callouts · Select to enlarge

40. Install the intake manifold. Refer to: Intake Manifold (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

41. Connect the heater hose quick connect couplings.

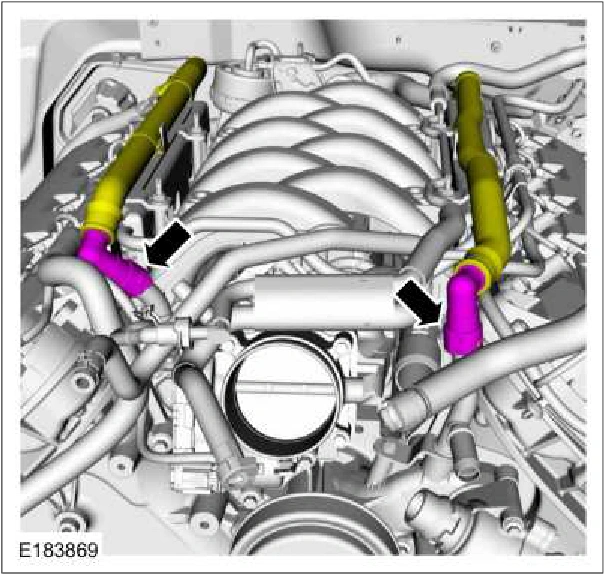

Engine — original illustration 2, reference 564Original colors & callouts · Select to enlarge

42. Connect the lower radiator hose to the thermostat housing assembly.
