Engine — 2016 workshop reference 552

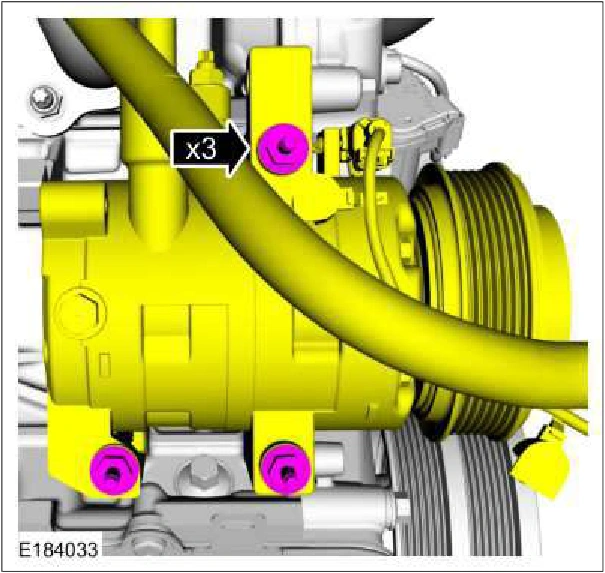

Engine — original illustration 1, reference 552Original colors & callouts · Select to enlarge

14. Attach the wiring harness retainers to the A/C compressor stud bolts.

Engine — original illustration 2, reference 552Original colors & callouts · Select to enlarge

15. Install the RH engine mount bracket, bolts and stud bolts. Torque : 41 lb.ft (55 Nm)
