Engine — 2016 workshop reference 549

Engine — original illustration 1, reference 549Original colors & callouts · Select to enlarge

8. Install LH transmission-to-engine bolts. Torque : 35 lb.ft (48 Nm)

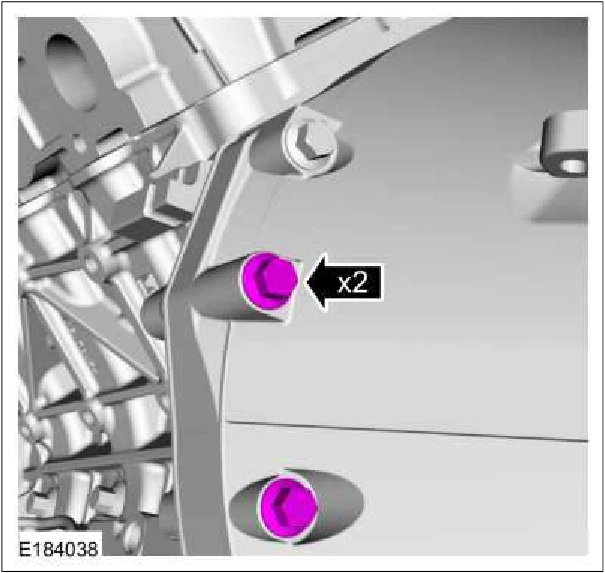

Engine — original illustration 2, reference 549Original colors & callouts · Select to enlarge

9. Install the RH transmission-to-engine bolt.
