Engine — 2016 workshop reference 546

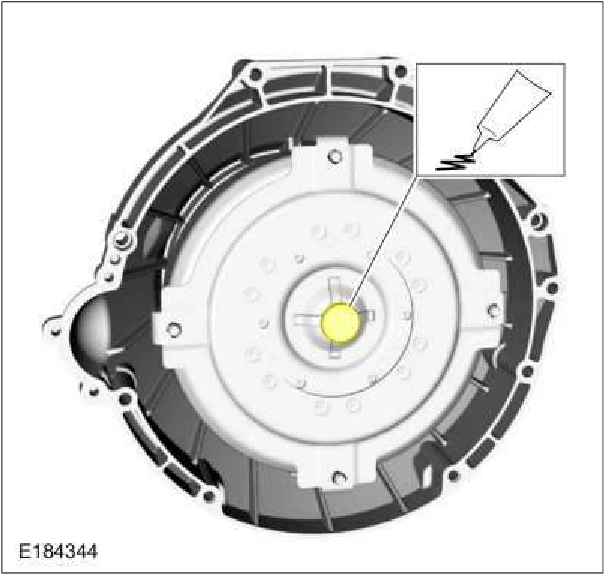

Engine — original illustration 1, reference 546Original colors & callouts · Select to enlarge

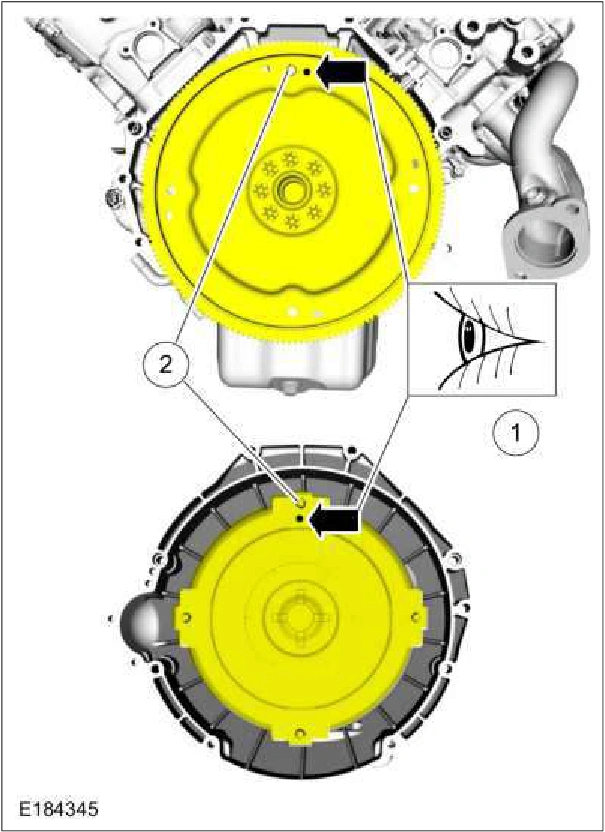

2. Inspect the torque converter stud and flexplate for paint marks. Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

Engine — original illustration 2, reference 546Original colors & callouts · Select to enlarge

Source reference 546

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
