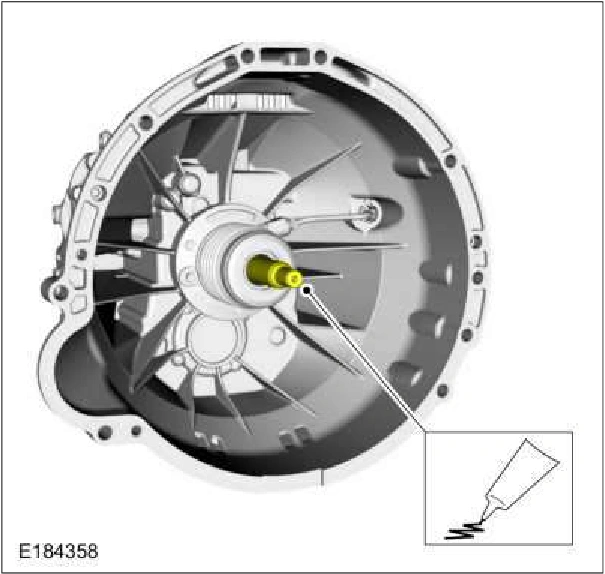

3. Lubricate the input shaft with multi-purpose grease. Material : Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Engine — original illustration 1, reference 547Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

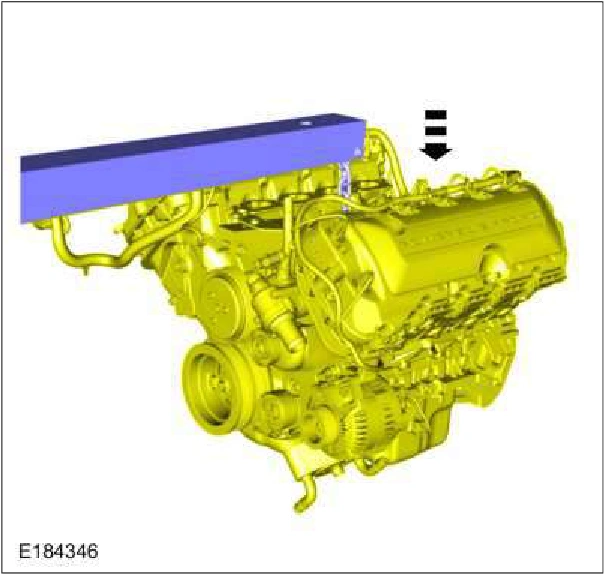

4. With the aid of an assitant, use the Floor Crane to install the engine into the vehicle. Use the General Equipment: Floor Crane

Engine — original illustration 2, reference 547Original colors & callouts · Select to enlarge

Step 5

1. Align the engine to the transmission.

2. Draw the engine and transmission together using the bolts. Torque : 35 lb.ft (48 Nm)

Source reference 547
