Engine — 2016 workshop reference 548

Engine — original illustration 1, reference 548Original colors & callouts · Select to enlarge

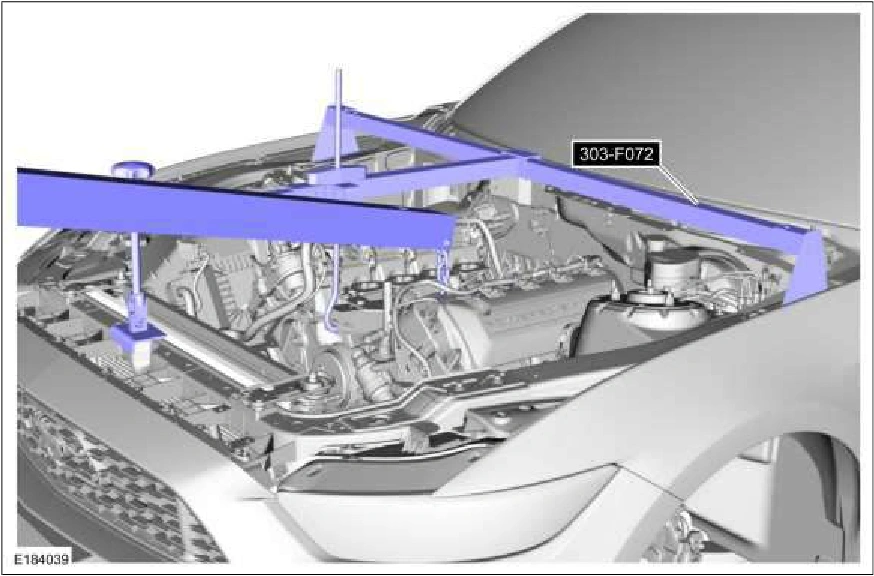

6. NOTICE: Do not position the legs of the Engine Support Bar on the fenders. Instead, the legs

should be positioned on the body structure. Failure to follow these instructions may result in body damage.

1. Install the special tools. Use Special Service Tool: 303-F072 Support Bar, Engine.

2. Once the engine is supported by the Engine Support Bar, remove the Floor Crane. Use the General Equipment: Floor Crane

Engine — original illustration 2, reference 548Original colors & callouts · Select to enlarge

7. Remove the jack and wooden block. Use the General Equipment: Wooden Block Use the General Equipment: Trolley Jack

Source reference 548

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
