Using a clutch aligner, position the clutch disc on the flywheel. If installing the original pressure plate, align the pressure plate to the flywheel using the index-marks made during removal. If installing a new pressure plate, align the pressure plate to the flywheel using the paint dots. Install new pressure plate bolts by turning the bolts 1 turn at a time in a star pattern until the clutch is fully secured. Use the General Equipment: Clutch Alignment Tool Torque : Stage 1: 34 lb.ft (46 Nm) Stage 2: 60°

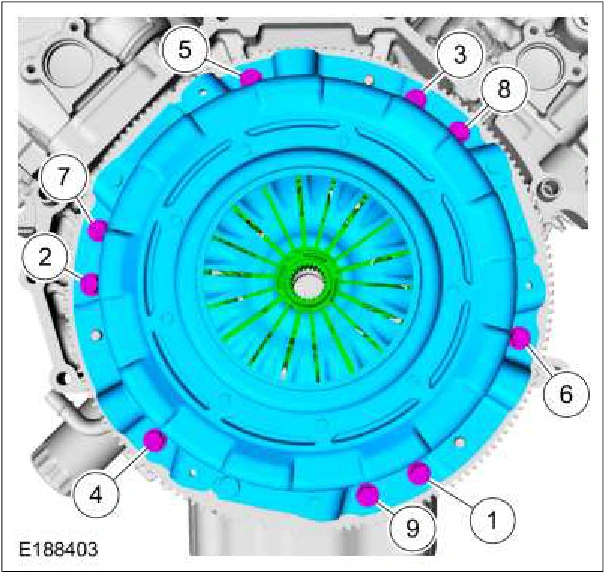

Engine — original illustration 1, reference 543Original colors & callouts · Select to enlarge
6-Speed Automatic Transmission - 6R80
121. Install the flexplate and the bolts. Torque : Stage 1: 177 lb.in (20 Nm) Stage 2: 60°
