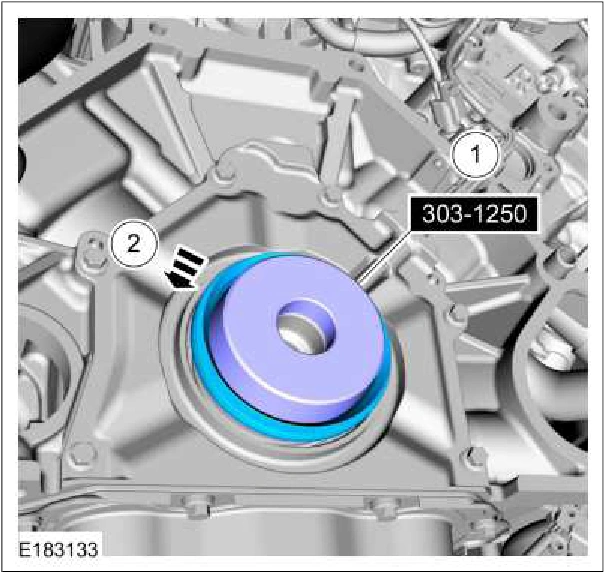

116. Position the special tool onto the end of the crankshaft.

Use Special Service Tool: 303-1250 Seal Installer, Rear Main. Slide the new crankshaft rear seal onto the tool.

Engine — original illustration 1, reference 541Original colors & callouts · Select to enlarge

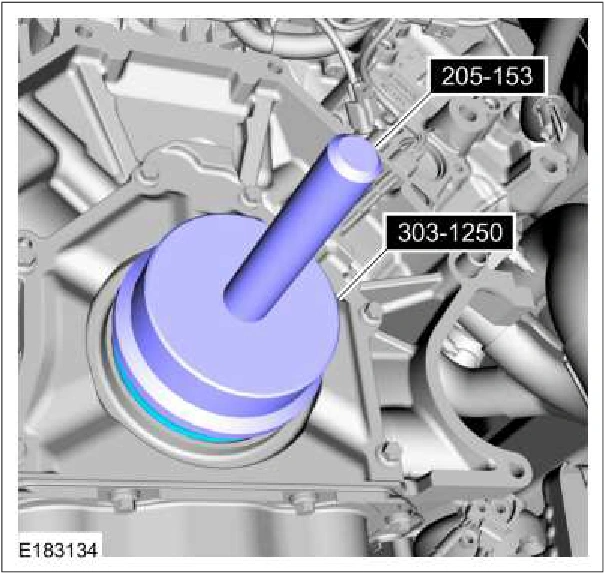

117. Using the special tools, install the crankshaft rear seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 303-1250 Seal Installer, Rear Main.

Engine — original illustration 2, reference 541Original colors & callouts · Select to enlarge

118. NOTE: Engine equipped with manual transmission shown, automatic transmission engine similar.

Install the engine-to-transmission spacer plate and the crankshaft sensor ring.
