Engine — 2016 workshop reference 538

Engine — original illustration 1, reference 538Original colors & callouts · Select to enlarge

111. Connect the EOP ) switch electrical connector and the wiring harness retainers.

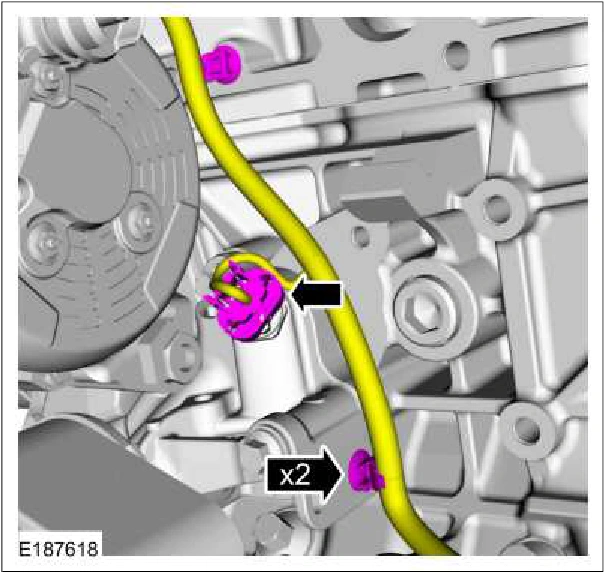

Engine — original illustration 2, reference 538Original colors & callouts · Select to enlarge

112. Connect the engine oil level sensor electrical connector and the wiring harness retainer.
