Engine — original illustration 1, reference 535Original colors & callouts · Select to enlarge

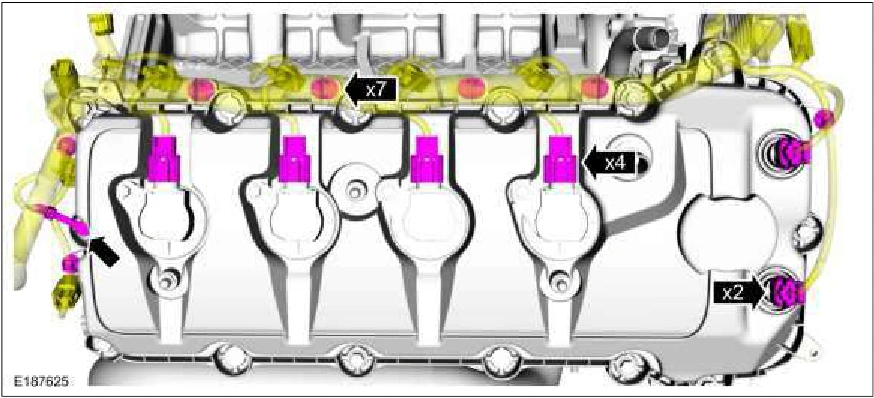

105. NOTE: Engine equipped with automatic transmission shown, manual transmission engine similar.

Connect the wiring harness electrical connectors and retainers.

Engine — original illustration 2, reference 535Original colors & callouts · Select to enlarge

106. Install the spark plug cover.
