Engine — original illustration 1, reference 534Original colors & callouts · Select to enlarge

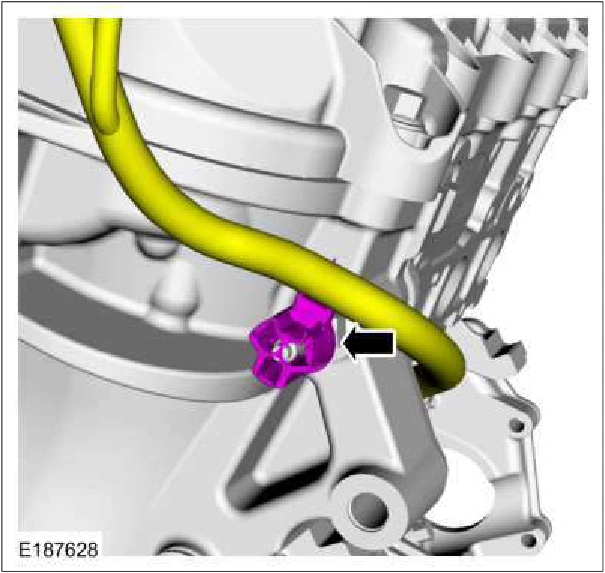

103. Connect the wiring harness electrical connectors and retainers.

Engine — original illustration 2, reference 534Original colors & callouts · Select to enlarge

104. Install the LH spark plug cover.

Install the crankcase ventilation tube. Refer to: Quick Release Coupling (310-00C Fuel System - General Information - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), General Procedures).
