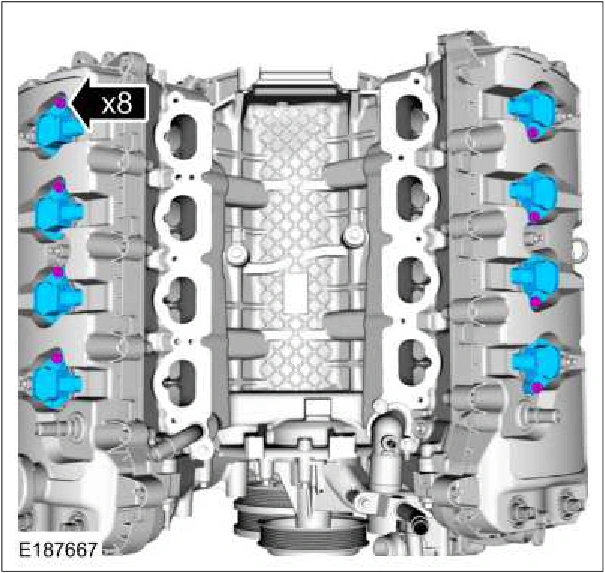

Engine — original illustration 1, reference 533Original colors & callouts · Select to enlarge

101. Position the wiring harness on the engine.

Install the ground wire and the nut. Torque : 89 lb.in (10 Nm) Attach the wiring harness retainer to the engine front cover stud bolt.

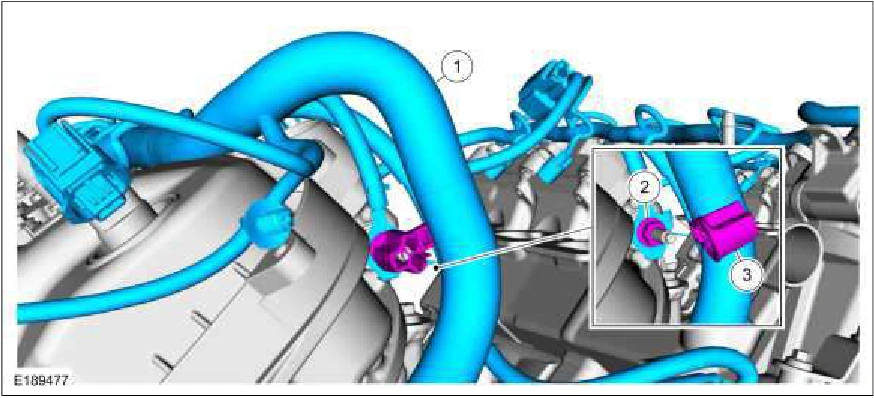

Engine — original illustration 2, reference 533Original colors & callouts · Select to enlarge

102. Attach the wiring harness retainer to the engine front cover stud bolt.
