303-01C Engine - 5.0L

2016 Mustang5.0LReference 530 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 530Original colors & callouts · Select to enlarge

95. NOTE: Installation of new seals is only required if damaged seals were removed.

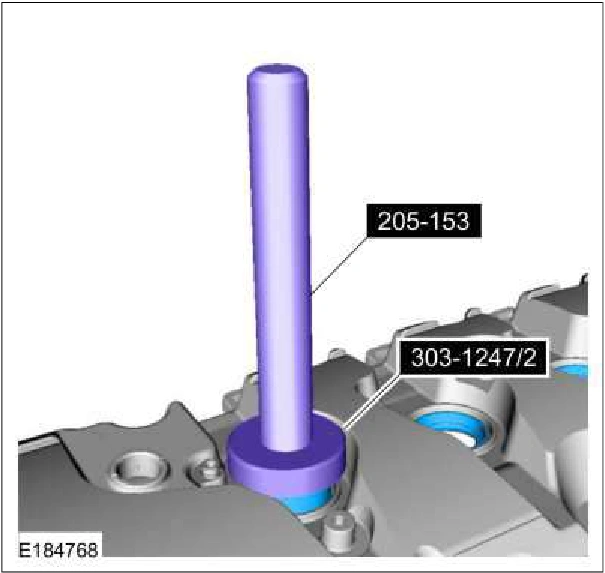

Using the special tools, install new spark plug tube seals into the RH valve cover. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

Engine — original illustration 2, reference 530Original colors & callouts · Select to enlarge

96. NOTE: Installation of new seals is only required if damaged seals were removed.

Using the special tools, install new VCT variable force solenoid seals into the RH valve cover. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.
