2016 workshop · Engine

Engine

303-01C Engine - 5.0L

2016 Mustang5.0LReference 528 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 528Original colors & callouts · Select to enlarge

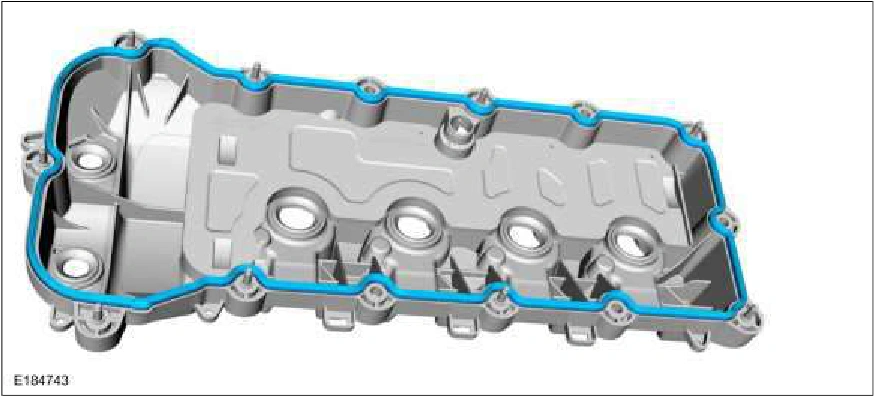

91. Install a new gasket onto the LH valve cover.

Engine — original illustration 2, reference 528Original colors & callouts · Select to enlarge

92. NOTICE: If the valve cover is not installed and the fasteners tightened within 5 minutes, the sealant

must be removed and the sealing area cleaned.

Apply an 8 mm (0.31 in) bead of silicone gasket and sealant to the engine front cover-to-LH cylinder head joints. Material : Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
