Engine — 2016 workshop reference 529

Engine — original illustration 1, reference 529Original colors & callouts · Select to enlarge

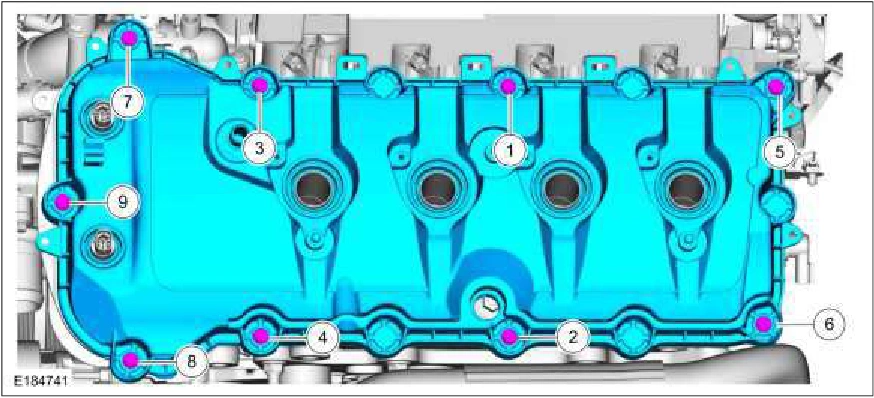

93. Install the LH valve cover and tighten the bolts. Torque : 89 lb.in (10 Nm)

Engine — original illustration 2, reference 529Original colors & callouts · Select to enlarge

Step 94

1. Push the oil level indicator tube into the engine.

2. Rotate the oil level indicator tube clockwise.

3. Verify the tab is locked in place.

4. Install the oil level indicator.
