303-01C Engine - 5.0L

2016 Mustang5.0LReference 527 / 6,619HTML edition
← Chapter contentsProcedure contents

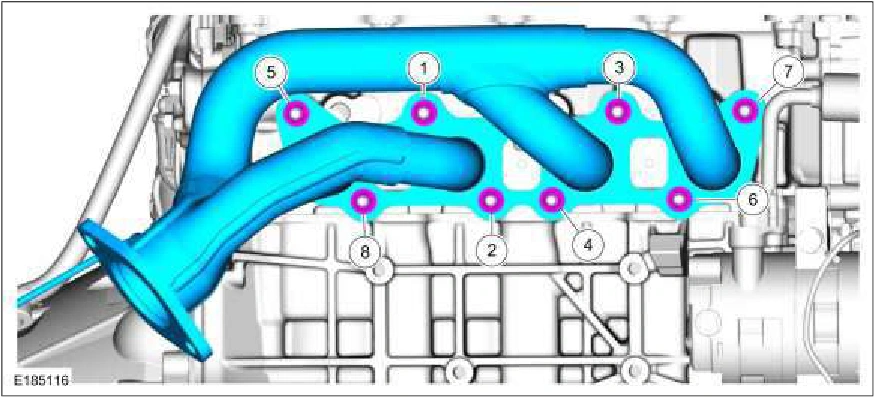

Engine — original illustration 1, reference 527Original colors & callouts · Select to enlarge

89. NOTE: Installation of new seals is only required if damaged seals were removed.

Using the special tools, install new spark plug tube seals into the LH valve cover. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

Engine — original illustration 2, reference 527Original colors & callouts · Select to enlarge

90. NOTE: Installation of new seals is only required if damaged seals were removed.

Using the special tools, install new VCT variable force solenoid seals into the LH valve cover. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.
