Engine — 2016 workshop reference 526

Engine — original illustration 1, reference 526Original colors & callouts · Select to enlarge

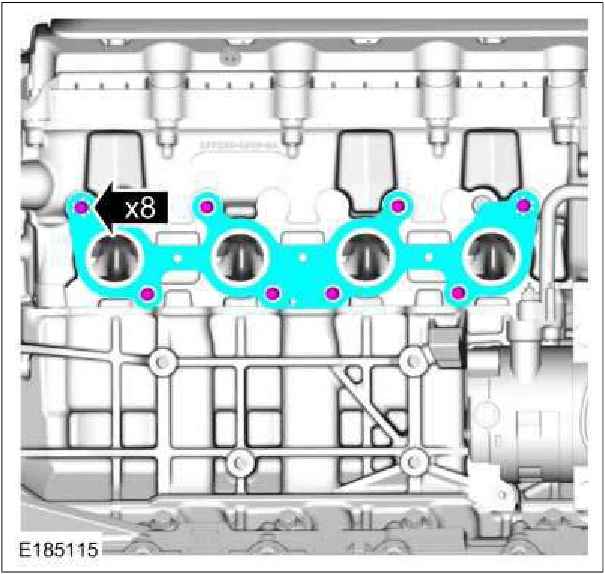

87. Install new studs and new gasket. Torque : 159 lb.in (18 Nm)

Engine — original illustration 2, reference 526Original colors & callouts · Select to enlarge

88. Install the exhaust manifold.

Install the new nuts. Torque : Stage 1: 159 lb.in (18 Nm) Stage 2: 18 lb.ft (24 Nm)

Source reference 526

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
