2016 workshop · Engine

Engine

303-01C Engine - 5.0L

2016 Mustang5.0LReference 523 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 523Original colors & callouts · Select to enlarge

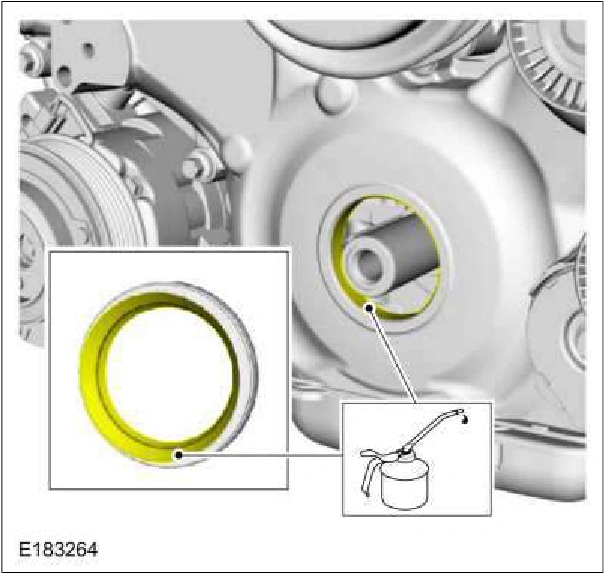

81. Lubricate the engine front cover bore and the crankshaft front oil seal inner lip with clean engine oil. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Engine — original illustration 2, reference 523Original colors & callouts · Select to enlarge

82. Using the special tools, install the new crankshaft front oil seal. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal. , 303-1531 Installer, Front Crank Seal and Damper.
