Engine — 2016 workshop reference 521

Engine — original illustration 1, reference 521Original colors & callouts · Select to enlarge

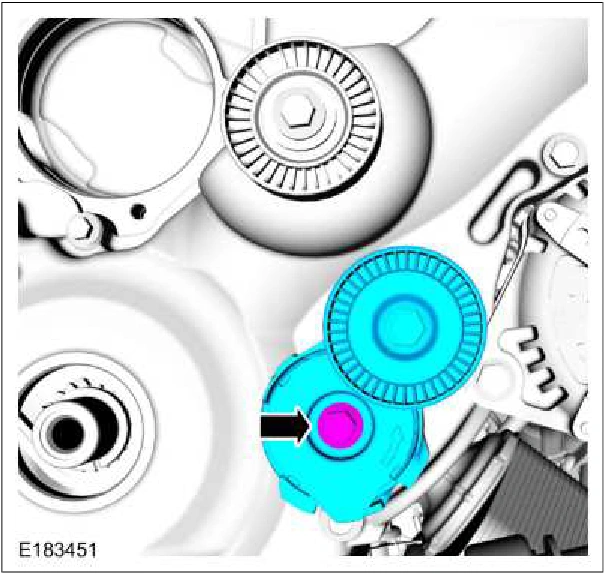

77. Install the accessory drive belt tensioner and bolt. Torque : 35 lb.ft (48 Nm)

Engine — original illustration 2, reference 521Original colors & callouts · Select to enlarge

78. Install a new coolant pump O-ring seal and lubricate with clean engine coolant. Material : Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) / VC-3-B (U.S.) (WSS-M97B44-D)
