Engine — 2016 workshop reference 520

Engine — original illustration 1, reference 520Original colors & callouts · Select to enlarge

75. NOTICE: The engine front cover must be installed and all fasteners final tightened within 5 minutes

of applying the sealer. If this cannot be accomplished, install the engine front cover and tighten fasteners 6, 7, 8, 9, 10 and 11 to 8 Nm (71 lb-in) within 5 minutes of applying the sealer. All of the fasteners must then be final tightened within 1 hour of applying the sealer. If this time limit is exceeded, all sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

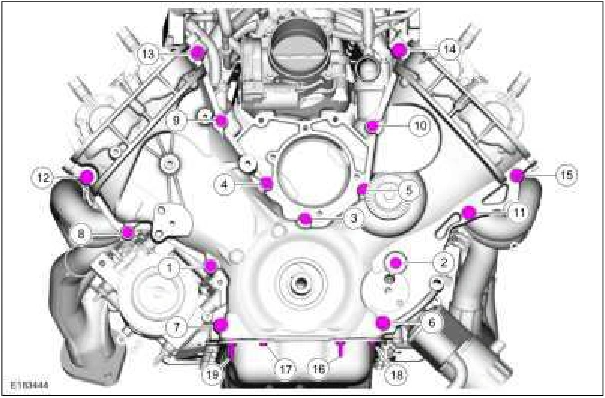

Install the bolts and stud bolts. Torque : Stage 1: Fasteners 1-15 : 18 lb.ft (25 Nm) Stage 2: Fasteners 16-19 : 89 lb.in (10 Nm) Stage 3: Fasteners 1-15 : 60° Stage 4: Fasteners 16-19 : 45°

Engine — original illustration 2, reference 520Original colors & callouts · Select to enlarge

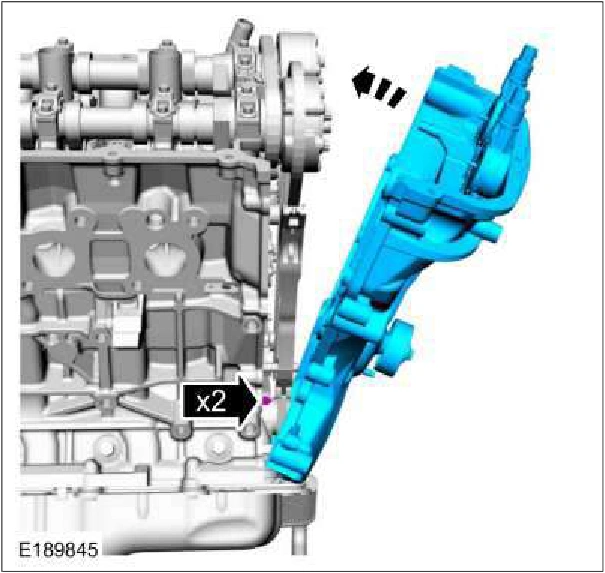

76. Install the generator, the bolt and the nut. Torque : 35 lb.ft (48 Nm)

Source reference 520

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
