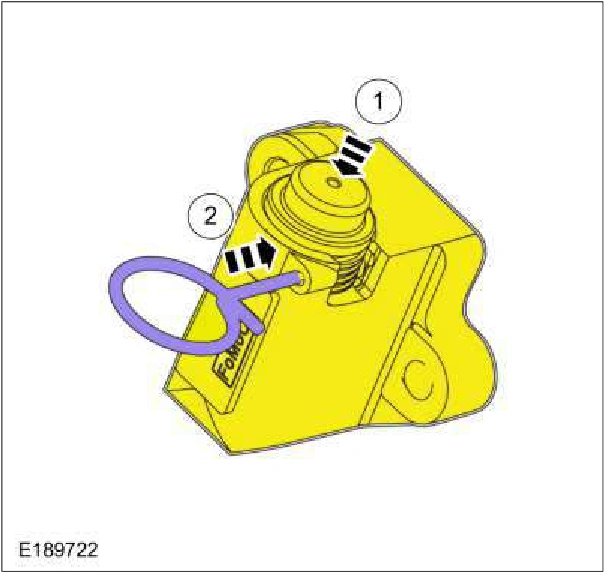

Engine — original illustration 1, reference 517Original colors & callouts · Select to enlarge

Step 70

1. Install the RH primary timing chain tensioner and bolts.

Torque : 89 lb.in (10 Nm)

2. Remove the holding pin from the tensioner.

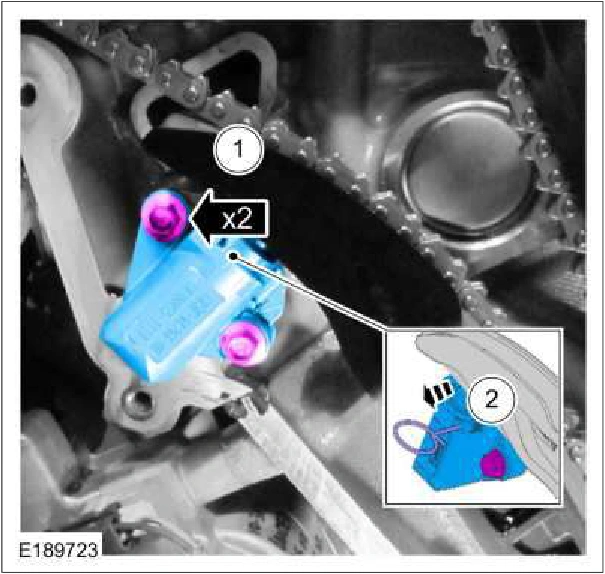

Engine — original illustration 2, reference 517Original colors & callouts · Select to enlarge

71. Install new gaskets on the engine front cover.
