66. Install the RH timing chain.

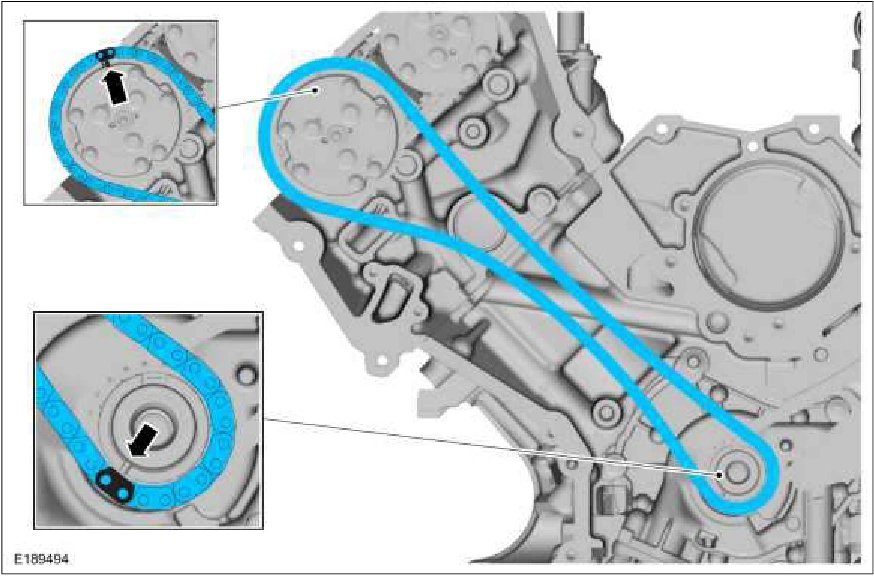

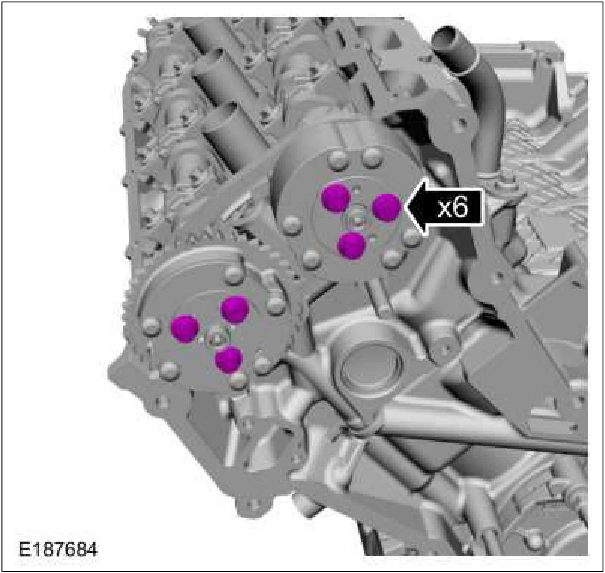

Align the colored link on the timing chain with the timing mark on the RH VCT assembly. Align the remaining colored link on the timing chain with the timing mark on the crankshaft sprocket.
67. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the RH timing chain guide. Return the crankshaft keyway to the 12 o'clock position after installing the RH timing chain guide.
Install the RH timing chain guide and bolt. Torque : 89 lb.in (10 Nm)
