303-01C Engine - 5.0L

2016 Mustang5.0LReference 518 / 6,619HTML edition
← Chapter contentsProcedure contents

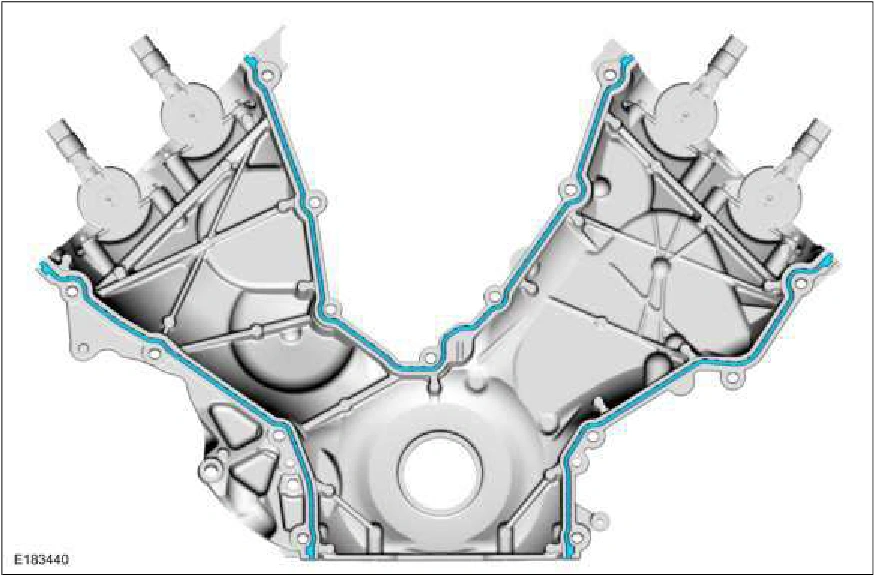

Engine — original illustration 1, reference 518Original colors & callouts · Select to enlarge

72. NOTICE: The VCT variable force solenoid pins must be fully depressed to avoid interference with

the VCT valve tips when installing the engine front cover. Failure to follow these instructions can result in damage to the engine.

NOTE: RH shown, LH similar.

Fully depress the VCT variable force solenoid pins.

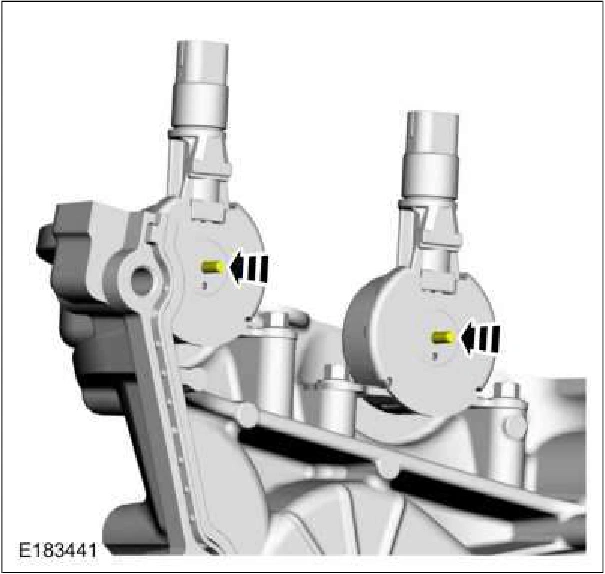

Engine — original illustration 2, reference 518Original colors & callouts · Select to enlarge
Source reference 518
