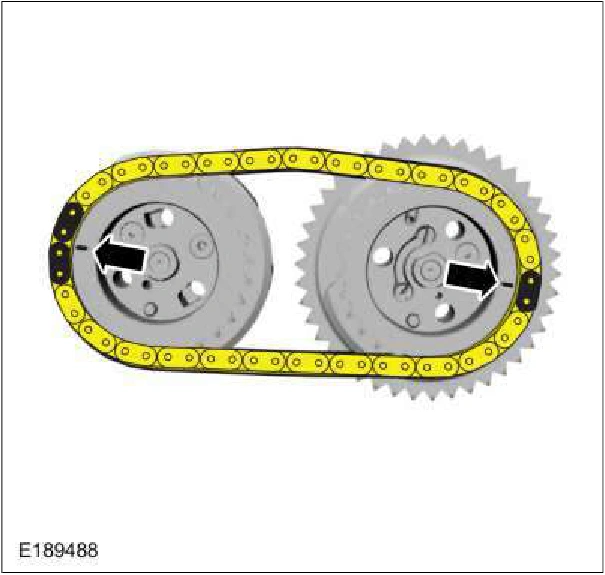

62. Position the secondary timing chain onto the VCT assemblies. Align the colored links on the secondary timing chain with the timing marks on the VCT assemblies as shown in the illustration.
The timing mark on the intake VCT assembly should align between the 2 consecutive colored links. The timing mark on the exhaust VCT assembly should align with the single colored link.

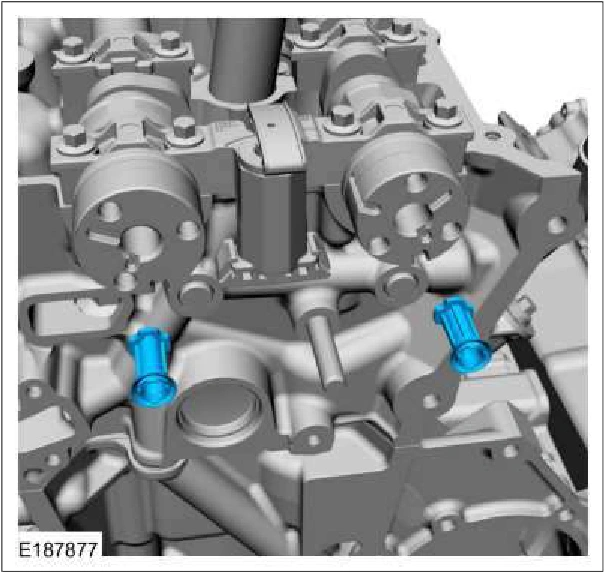

63. Install the VCT assemblies and the secondary timing chain onto the camshafts. The timing mark on the exhaust VCT assembly should be approximately in the 1 o'clock position.
