303-01C Engine - 5.0L

2016 Mustang5.0LReference 511 / 6,619HTML edition
← Chapter contentsProcedure contents

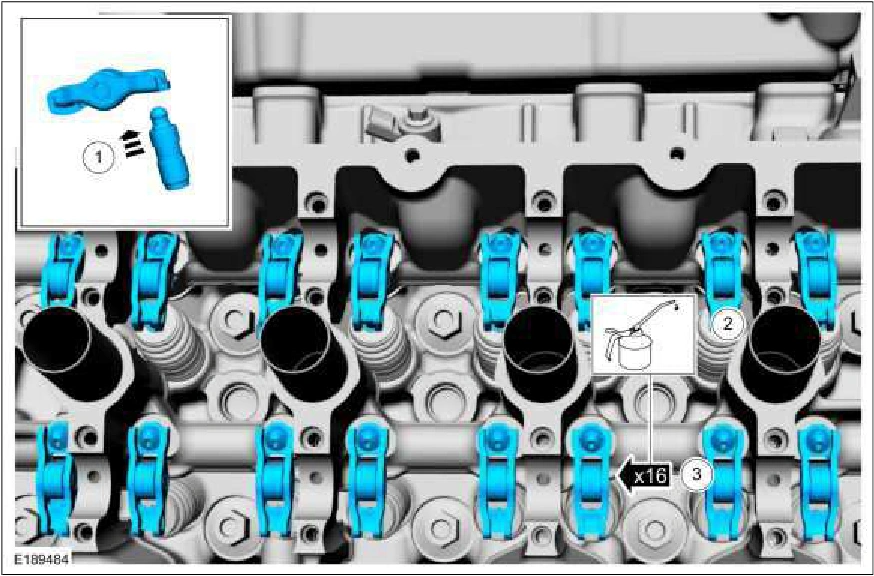

Engine — original illustration 1, reference 511Original colors & callouts · Select to enlarge

57. NOTE: Lubricate the camshafts with clean engine oil prior to installation.

Install the RH intake and exhaust camshafts in the neutral position. Align the D-slots as shown in the illustration. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

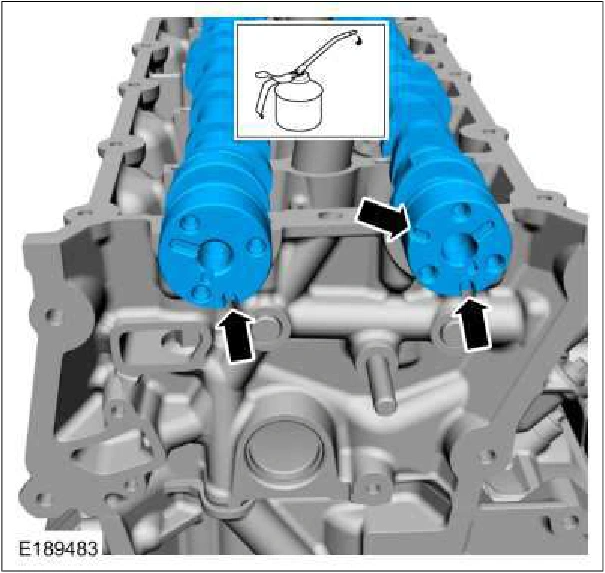

Engine — original illustration 2, reference 511Original colors & callouts · Select to enlarge

58. NOTE: Do not tighten at this time.

Install the camshaft bearing caps and the bolts.

Source reference 511
