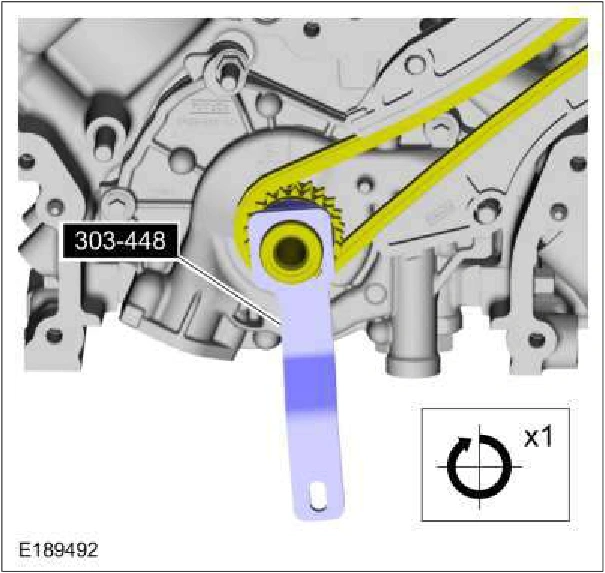

Engine — original illustration 1, reference 510Original colors & callouts · Select to enlarge

55. Using the special tool, rotate the crankshaft clockwise until the keyway is at the 12 o'clock position. Use Special Service Tool: 303-448 (T93P-6303-A) Holding Tool, Crankshaft.

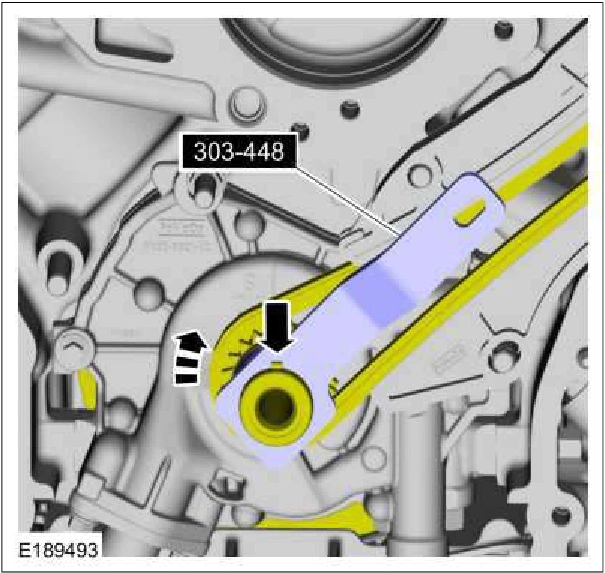

Engine — original illustration 2, reference 510Original colors & callouts · Select to enlarge

56. NOTE: If the components are to be reinstalled, they must be installed in their original locations.

1. Assemble the hydraulic lash adjusters onto the spring clips on the camshaft roller followers.

2. Lubricate the camshaft roller follower and hydraulic lash adjuster assemblies with clean engine oil. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

3. Install the camshaft roller follower and hydraulic lash adjuster assemblies.
