51. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the LH timing chain arm. Return the crankshaft keyway to the 5 o'clock position after installing the LH timing chain arm.

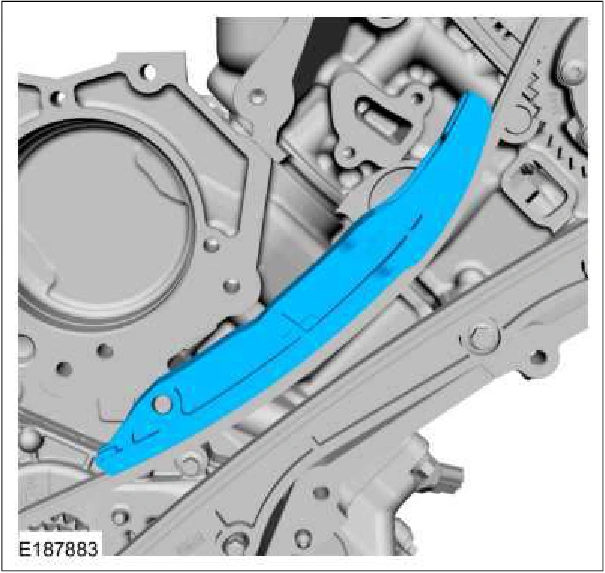

Install the LH timing chain tensioner arm.
Step 52
1. Compress the primary timing chain tensioner plunger, using an edge of a vise.
2. Install a suitable pin into the hole of the tensioner housing to hold the plunger in place during installation.
