Engine — 2016 workshop reference 509

Engine — original illustration 1, reference 509Original colors & callouts · Select to enlarge

Step 53

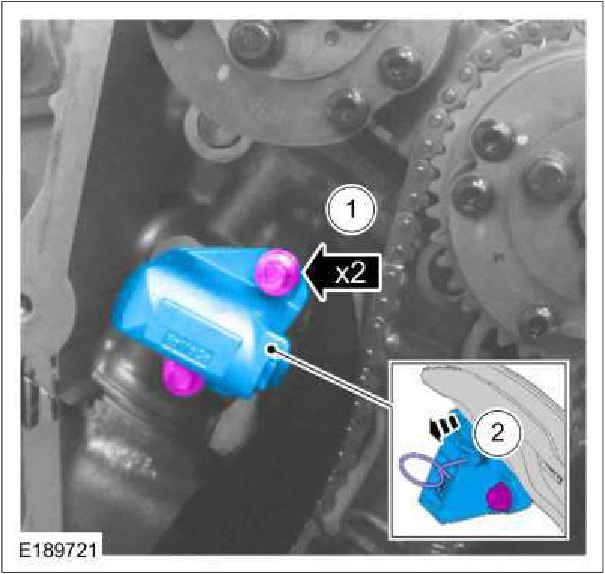

1. Install the LH primary timing chain tensioner and bolts.

Torque : 89 lb.in (10 Nm)

2. Remove the holding pin from the tensioner.

Engine — original illustration 2, reference 509Original colors & callouts · Select to enlarge

54. Using the special tool, rotate the crankshaft clockwise one complete revolution. Use Special Service Tool: 303-448 (T93P-6303-A) Holding Tool, Crankshaft.

Source reference 509
