Engine — 2016 workshop reference 507

Stage 2: 90°

Engine — original illustration 1, reference 507Original colors & callouts · Select to enlarge

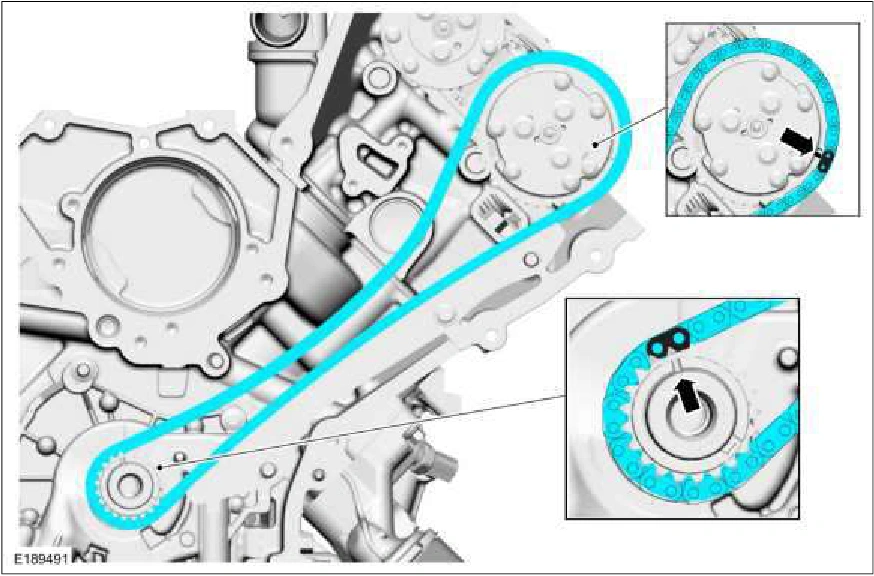

49. Install the LH timing chain.

Align the colored link on the timing chain with the timing mark on the LH VCT assembly. Align the remaining colored link on the timing chain with the timing mark on the crankshaft sprocket.

Engine — original illustration 2, reference 507Original colors & callouts · Select to enlarge

50. NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the LH timing chain guide. Return the crankshaft keyway to the 5 o'clock position after installing the LH timing chain guide.

Install the LH timing chain guide and bolt. Torque : 89 lb.in (10 Nm)

Source reference 507
