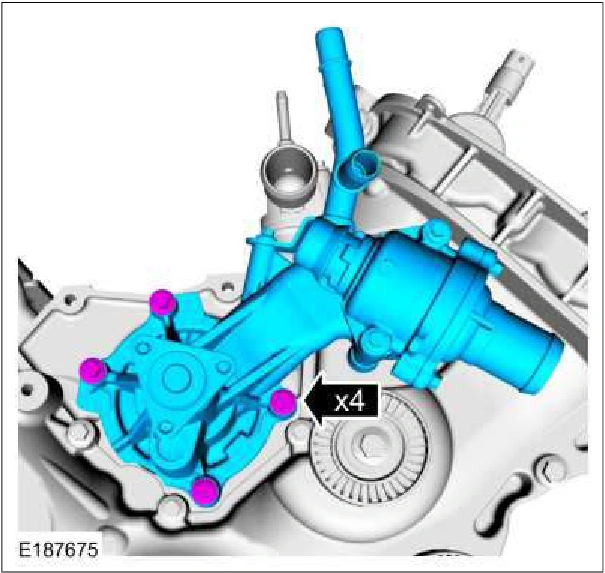

79. Install the coolant pump and bolts. Torque : Stage 1: 177 lb.in (20 Nm) Stage 2: 60°

Engine — original illustration 2, reference 522Original colors & callouts · Select to enlarge

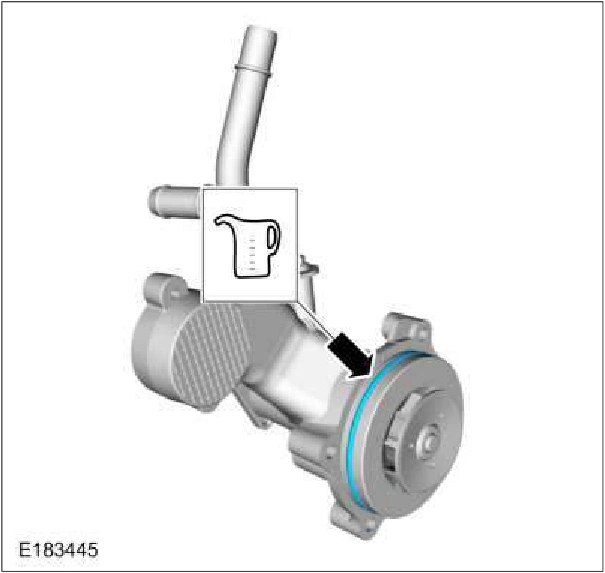

80. Install the coolant pump pulley and the bolts. Torque : 18 lb.ft (25 Nm)
