83. NOTE: If not secured within 5 minutes, the sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

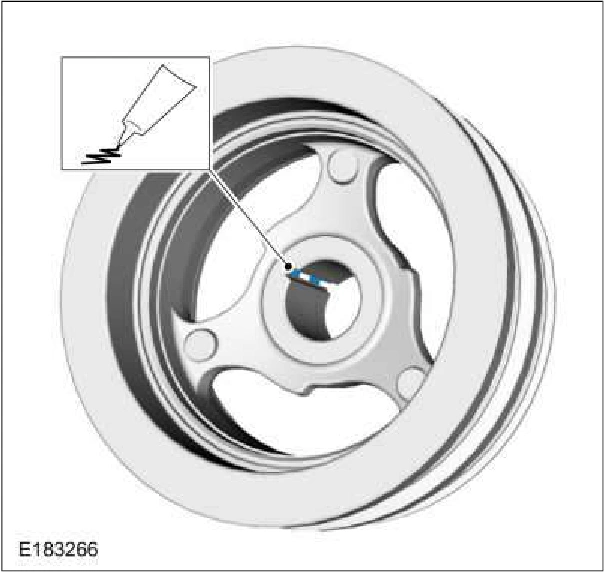

Apply silicone gasket and sealant to the Woodruff key slot in the crankshaft pulley. Material : Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
84. Lubricate the crankshaft pulley sealing surface with clean engine oil prior to installation. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)
