303-01C Engine - 5.0L

2016 Mustang5.0LReference 536 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 536Original colors & callouts · Select to enlarge

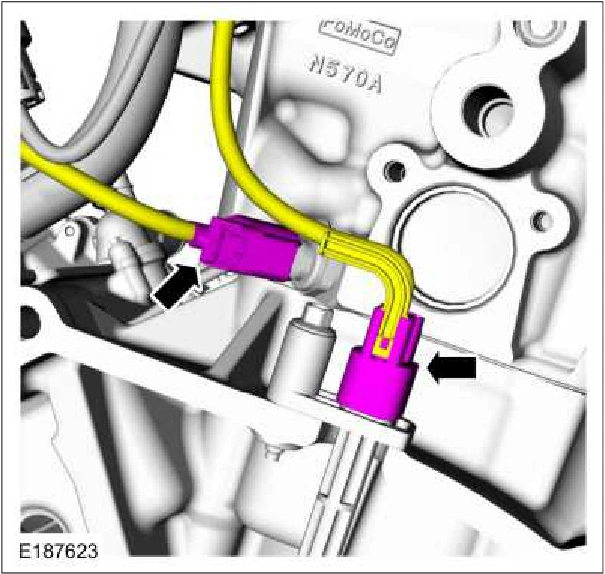

107. Connect the CHT sensor and the CKP sensor electrical connectors.

Engine — original illustration 2, reference 536Original colors & callouts · Select to enlarge

108. Install the RH camshaft position sensors and the bolts.

Torque : 89 lb.in (10 Nm) Connect the RH camshaft position sensor electrical connectors.
