303-01C Engine - 5.0L

2016 Mustang5.0LReference 539 / 6,619HTML edition
← Chapter contentsProcedure contents

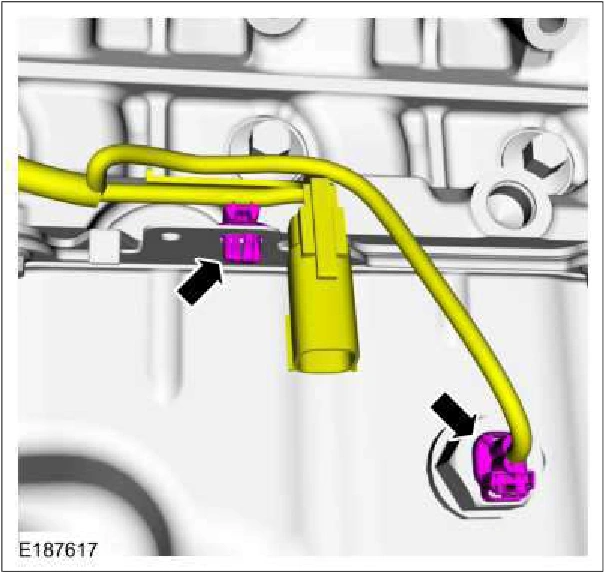

Engine — original illustration 1, reference 539Original colors & callouts · Select to enlarge

113. NOTE: Manual transmission engine shown, automatic transmission engine similar.

Connect theRH HO2S electrical connector and wiring harness retainer.

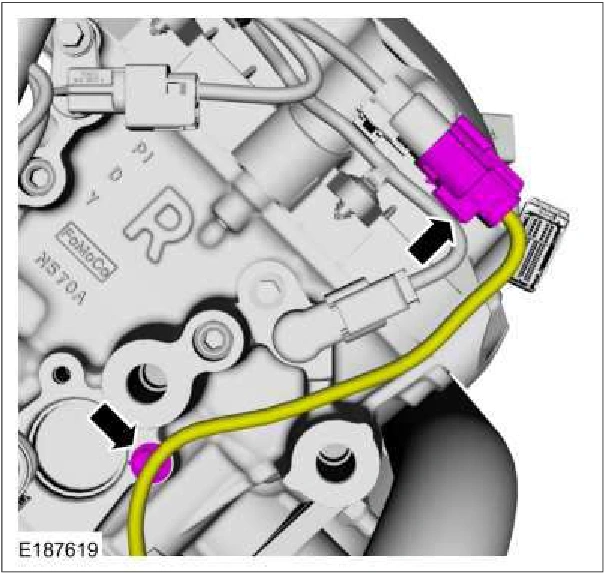

Engine — original illustration 2, reference 539Original colors & callouts · Select to enlarge

114. Install the special tool and remove the engine from the engine stand using a floor crane. Install Special Service Tool: 303-F047 Lifting Bracket, Engine. Use the General Equipment: Floor Crane Use the General Equipment: Mounting Stand

Source reference 539

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
