Engine — 2016 workshop reference 542

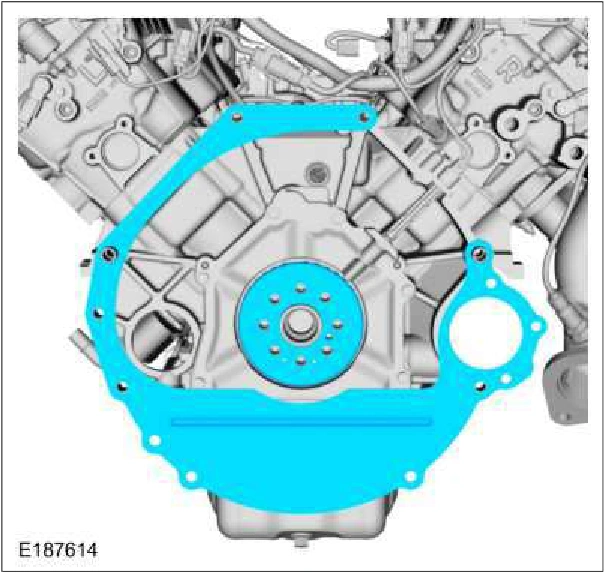

Engine — original illustration 1, reference 542Original colors & callouts · Select to enlarge

6-Speed Manual Transmission - MT82

119. Install the flywheel and the bolts. Torque : Stage 1: 89 lb.in (10 Nm) Stage 2: 177 lb.in (20 Nm) Stage 3: 60°

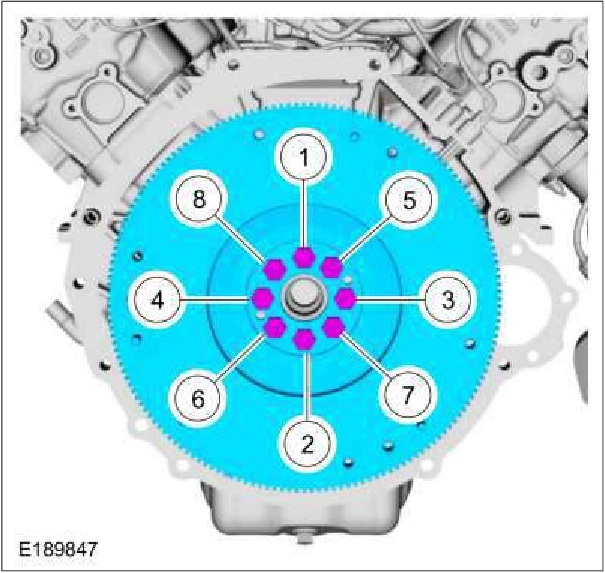

Engine — original illustration 2, reference 542Original colors & callouts · Select to enlarge

120. NOTICE: If installing a new pressure plate and/or flywheel, align the paint dot on the pressure plate

as close as possible to the paint dot on the flywheel or a clutch system vibration can occur.

NOTICE: If installing the original pressure plate, align it using the index-marks made during removal or a clutch system vibration can occur.

Source reference 542
