303-01C Engine - 5.0L

2016 Mustang5.0LReference 537 / 6,619HTML edition
← Chapter contentsProcedure contents
Engine — original illustration 1, reference 537Original colors & callouts · Select to enlarge

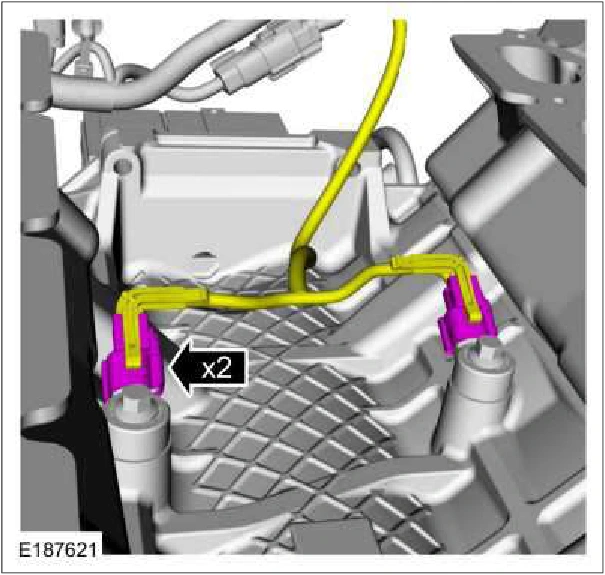

109. Connect the KS electrical connectors.

Engine — original illustration 2, reference 537Original colors & callouts · Select to enlarge

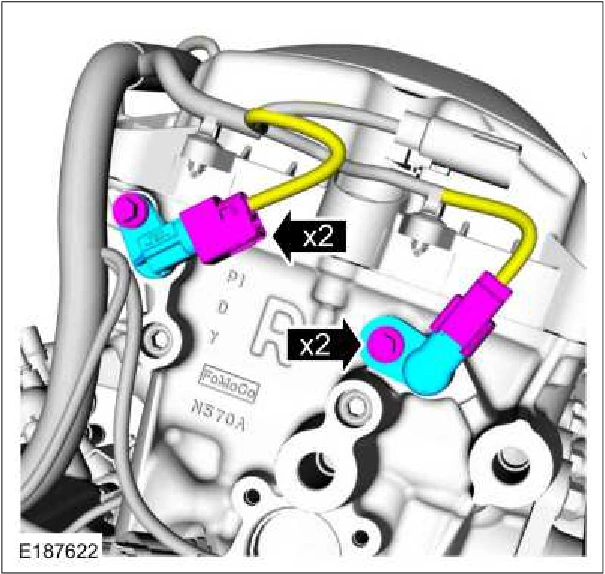

110. Install the LH camshaft position sensors and the bolts.

Torque : 89 lb.in (10 Nm) Position the ground wire and install the bolt. Torque : 106 lb.in (12 Nm) Connect the LH camshaft position sensor electrical connectors.
