Engine — 2016 workshop reference 570

Engine — original illustration 1, reference 570Original colors & callouts · Select to enlarge

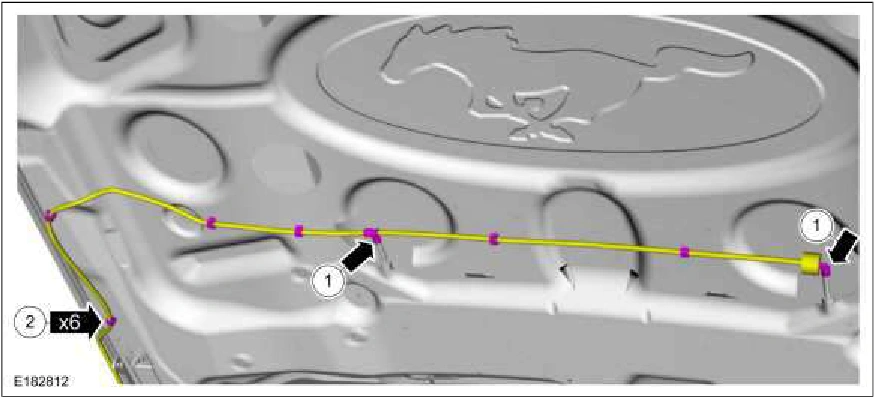

Step 55

1. Connect the windshield washer hose C-Lock Couplers.

2. Attach the windshield washer hose retainers.

Engine — original illustration 2, reference 570Original colors & callouts · Select to enlarge

56. Install the hood insulation and the pin-type retainers.

Source reference 570
