417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Headlamp Assembly

Base Part Number: 13005

Removal

1. Remove the front bumper cover. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

2. Remove the screws and position the headlamp assembly forward. Torque : Front mounting bolts: 74 lb.in (8.4 Nm) Side mounting bolt: 28 lb.in (3.2 Nm)

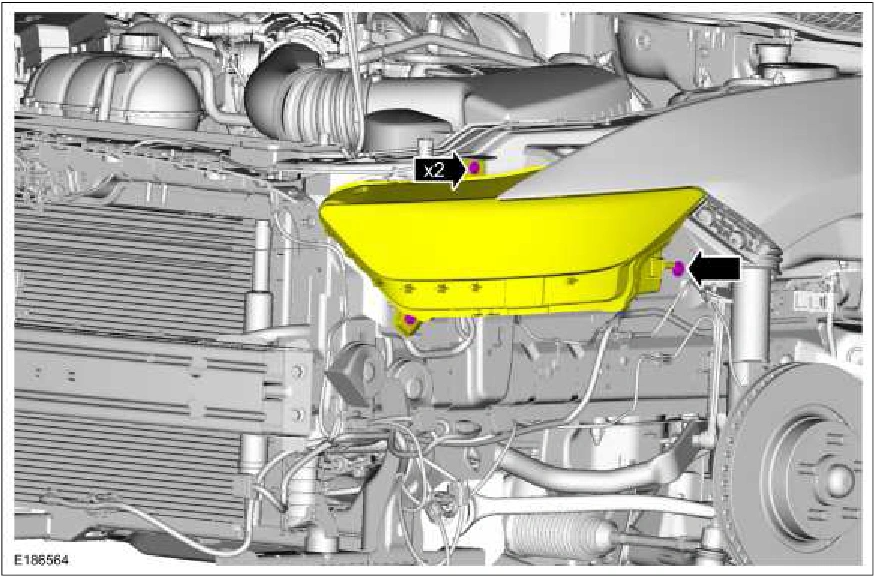

Headlamp Assembly — original illustration 1, reference 5775Original colors & callouts · Select to enlarge

3. Disconnect the electrical connector and remove the headlamp assembly.

Source reference 5775
