417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Headlamp Bulb

Base Part Number: 13N021

Removal

1. Remove the headlamp assembly. Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

2. Remove the headlamp bulb cover.

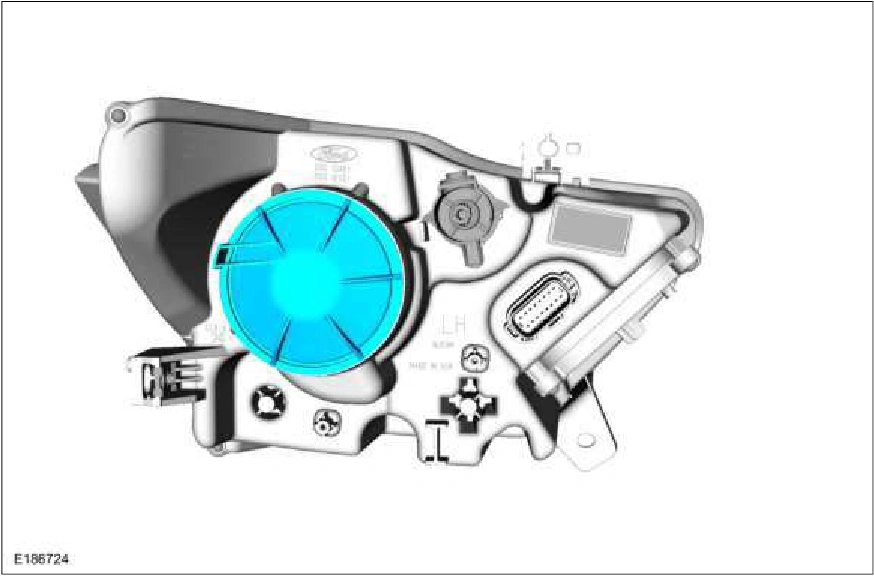

Headlamp Bulb — original illustration 1, reference 5777Original colors & callouts · Select to enlarge

3. Disconnect the headlamp bulb connector.

Source reference 5777
