Headlamp Switch

417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Base Part Number: 13A024

Removal

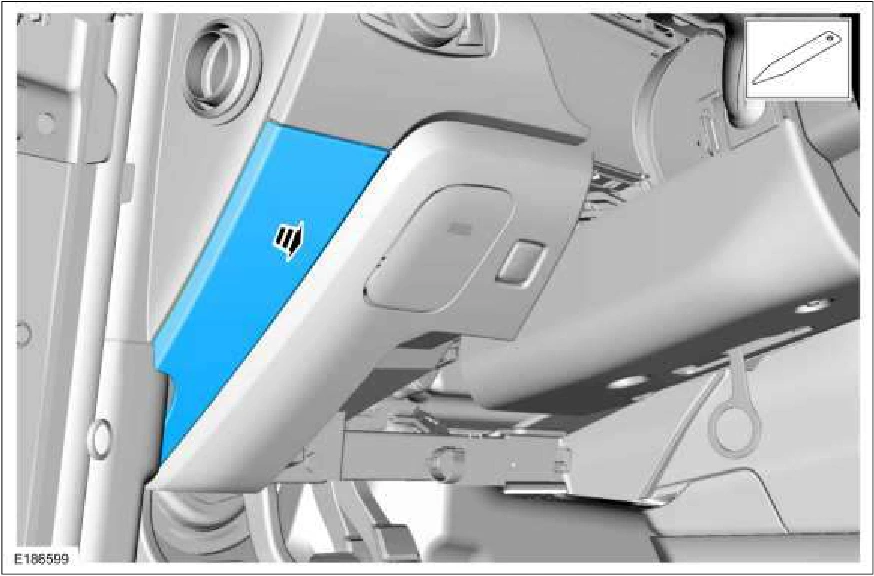

1. Using a non-marring tool, remove the trim panel.

Headlamp Switch — original illustration 1, reference 5779Original colors & callouts · Select to enlarge

2. Remove the screw and position the LH dash finish panel aside.

Source reference 5779
