Headlamp Switch — 2016 workshop reference 5780

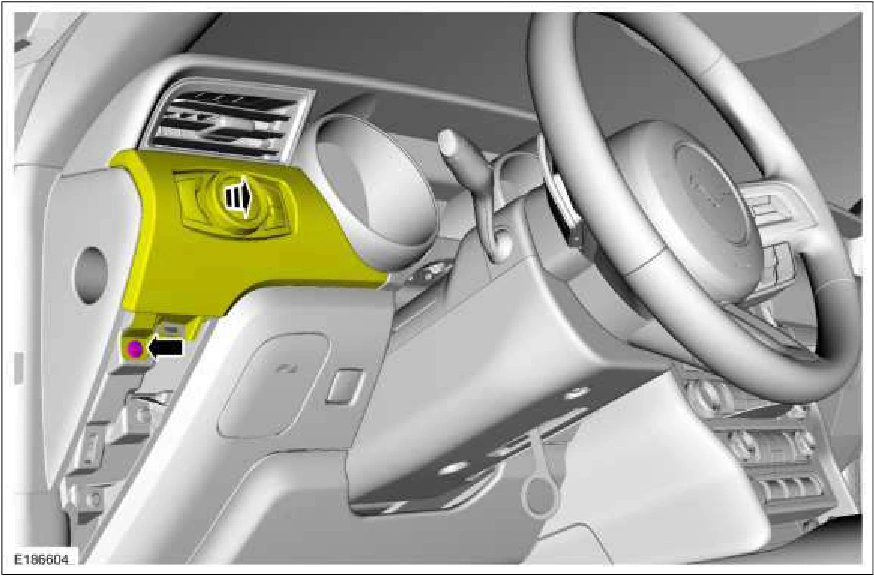

Headlamp Switch — original illustration 1, reference 5780Original colors & callouts · Select to enlarge

3. Remove the headlamp switch.

1. Disconnect the headlamp switch electrical connector.

2. Release the tabs.

3. Remove the headlamp switch.

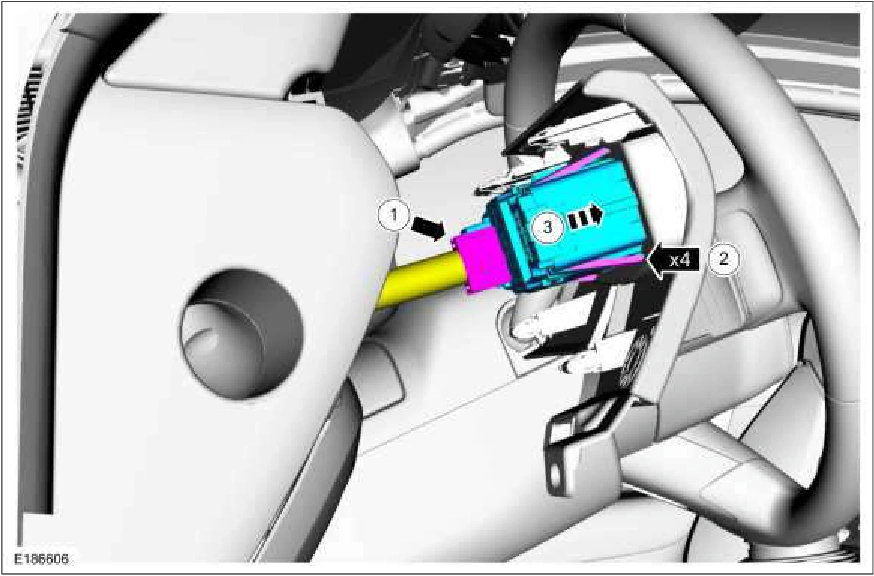

Headlamp Switch — original illustration 2, reference 5780Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 5780
