High Mounted Stoplamp - Coupe — 2016 workshop reference 5783

417-01 Exterior Lighting 2016 Mustang

Removal and Installation Procedure revision date: 07/16/2015

High Mounted Stoplamp - Coupe

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Lower the rear of the headliner. Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).

2. Remove the center mounted high stoplamp.

1. Remove the nuts. Torque : 36 lb.in (4.1 Nm)

2. Disconnect the electrical connector.

3. Release the tabs.

4. Release the two-sided seal tape.

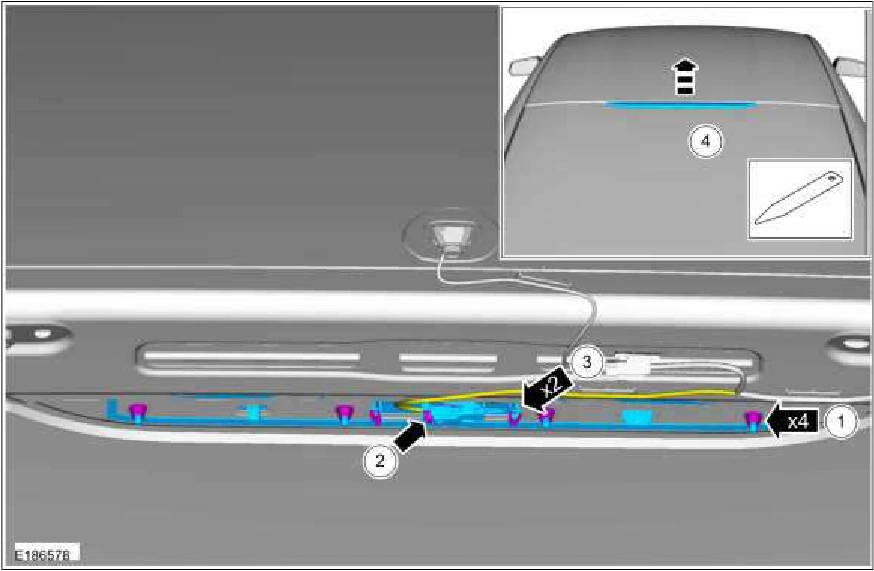

High Mounted Stoplamp - Coupe — original illustration 1, reference 5783Original colors & callouts · Select to enlarge

Installation

1. Clean and prepare the sealing surface. Using 3M TM Specialty Adhesive Remover clean the mating surface. Using an alcohol pad, prepare the mating surface.
